Technical Parameter

*Remark:

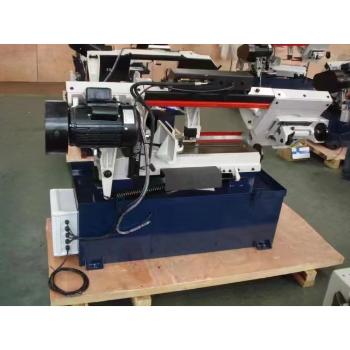

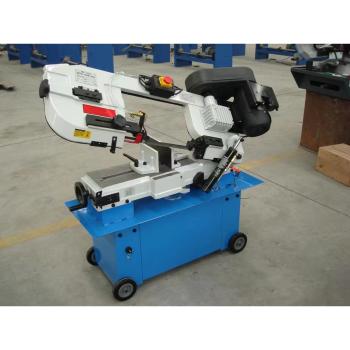

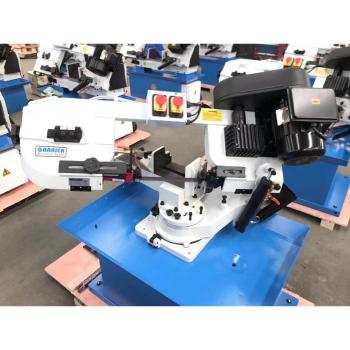

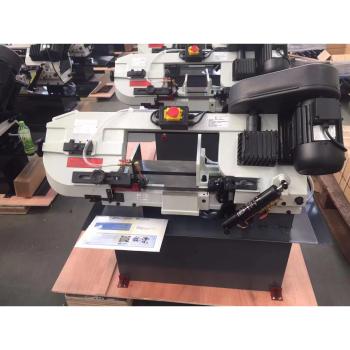

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

1. Vertical cutting available

2. Standard with wheels make it easy to move to different workplace

3. Swivel vise to get angle cutting

4. Fast clamping available

The main performance characteristics：

1.7" round bar cutting capacity at 90°

2.Belt drive, to get 4 cutting speed, 27, 41, 59, 78 MPM at 50HZ motor

3.Three phase powerful motor, 0.75KW

4.The maximum processing capacity is 7",

5. The belt drive has fourth gear cutting speed (indicated by the letter N);

6. The belt drive has third th gear cutting speed (indicated by the letter G);

7. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);

8. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);

9. Can the vertical horizontal dual-use ;

10. The fall speed of the saw bow is controlled by the hydraulic cylinder;

11. The machinery with base a roller, can be free to move ;

12. With stop device (After the machine sawing and cutting will automatically stop );

13. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off)

14. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece

15. Block device (fixed sawing length)
