Packing Information

Pcs/Carton: 1

Packing Size/Carton:81*43.5*60.4

Packing Vol/Carton: 0.21 m³

N.W./Carton: 63.0 kg

G.W./Carton: 93.0 kg

QTY in 40HQ: N/A

QTY in 40GP: N/A

QTY in 20GP: N/A

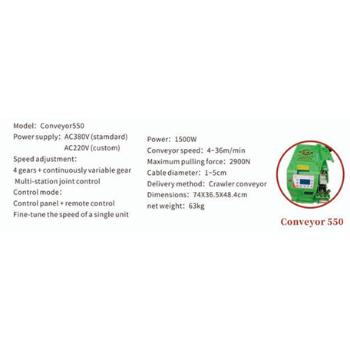

This machine features a compact, optimized design that is lightweight and space-saving. It is smart and efficient, easily movable, and ideally suited for long-distance cable laying in confined spaces, such as cable trays, subway tunnels, instrumentation cables, and electrical control wiring installations. It delivers excellent performance, operating smoothly and quietly with high conveying speeds. Requiring minimal maintenance, it significantly enhances construction efficiency.

During operation, the machine ensures cables lay flat without overlapping or crushing. Its tracks allow quick adjustment of pre-tension force, applying uniform, gentle pressure and tension to the cable, preventing damage.

The machine consists of three main components: the motor, conveying mechanism, and control system. It operates in both forward and reverse directions, offering 4 main speed gears plus stepless speed adjustment via the "+" function.

The machine and remote control support frequency pairing for group use without interference. It also features multi-unit synchronized control for long-distance operation.
